A CMC original design that has withstood the test of time, these Anchor Plates keep the carabiners, holding the different parts of your rescue system, from jamming together. The hardware becomes easier to see, making safety checks more accurate. It can also keep you from clipping a carabiner into the wrong loop of the anchor web, risking failures.
For most anchor systems, it makes an excellent collection point.
Besides serving as the point of distribution to any number of secure anchor points, rigging plates also serve the benefit of aligning the separate lines of a rigging system in distinct order, keeping multiple and various lines orderly. One tip when determining complementary gear to use with rigging plates; consider the versatility swivel pulleys can lend to the rigging system. They introduce rotational movement into the rigging lines running from the plate because the swivel pulley can rotate as needed to provide enhanced in-line ability to clear other components within the system.
Hole diameters:
- Small: 7/8 in (22 mm)
- Large: 2 in (51 mm)
Variant Specifications:

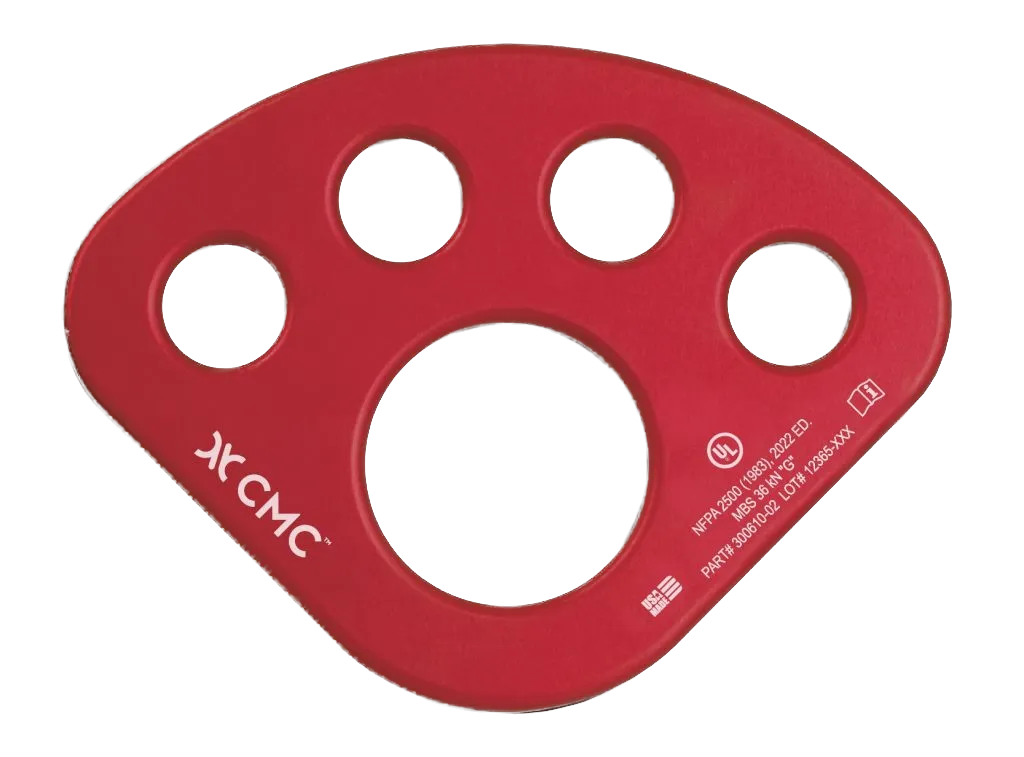

- Material: Aluminum
- Weight: 7.2 Oz (204 g)
- Colour: Red
- Certifications: NFPA GENERAL USE
- MBS: 36 KN (8,093 LBF)

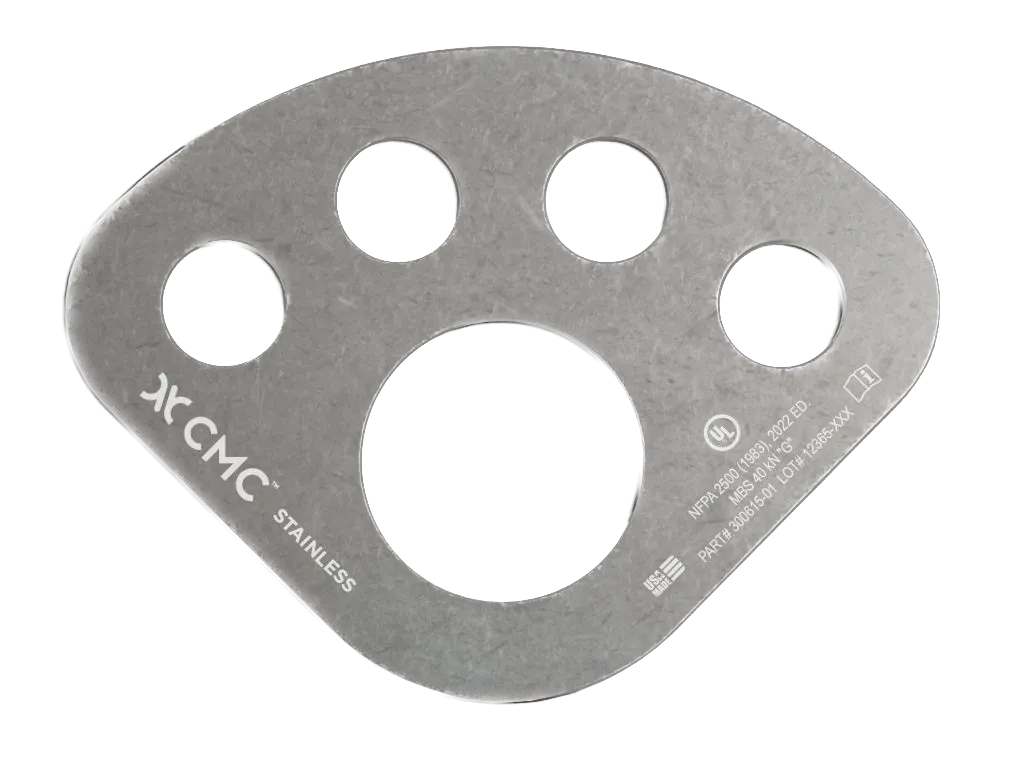

- Material: Stainless Steel
- Weight: 9.8 Oz (278 g)
- Colour: Stainless
- Certifications: NFPA GENERAL USE
- MBS: 40 KN (8,992 LBF)
